New housing comes as standard with two fiber-optic ports and a built-in moisture detector

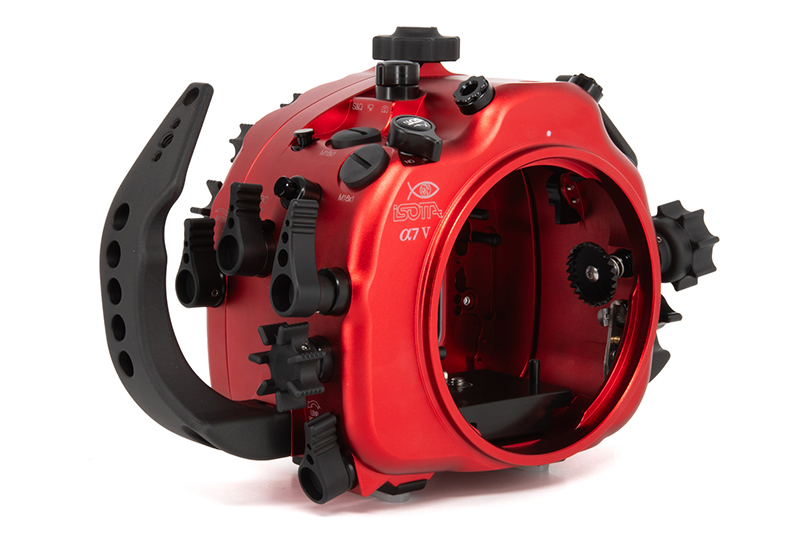

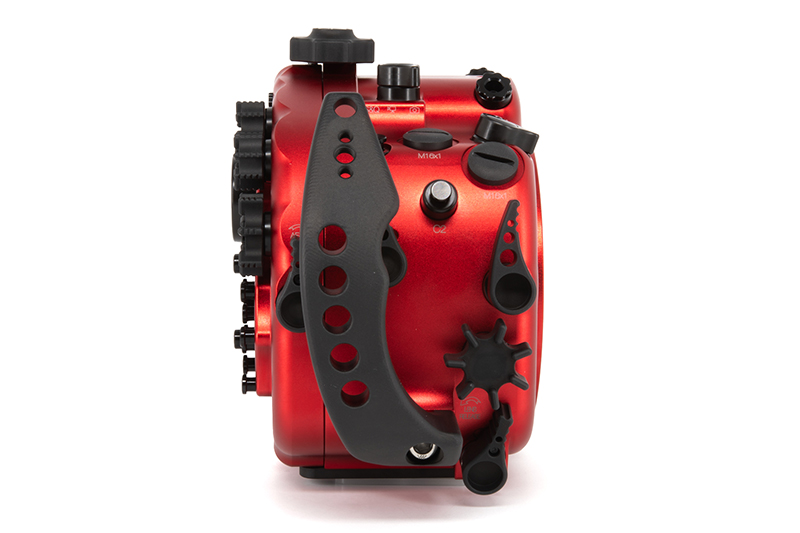

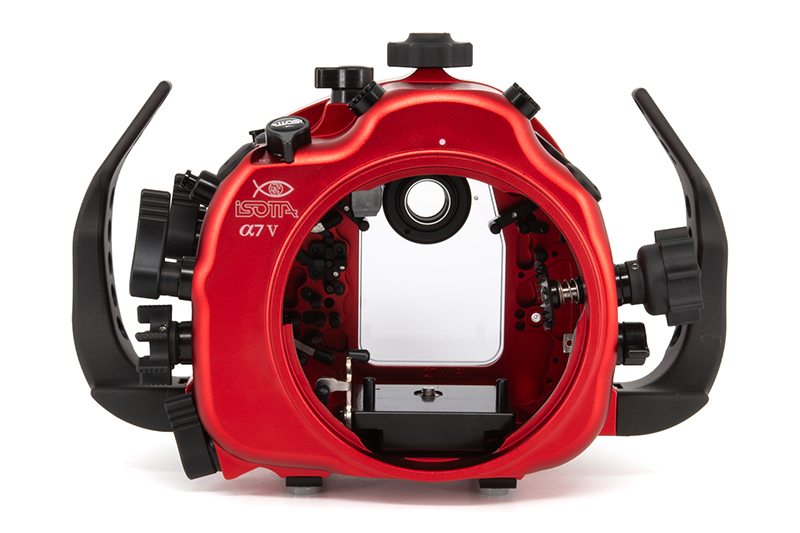

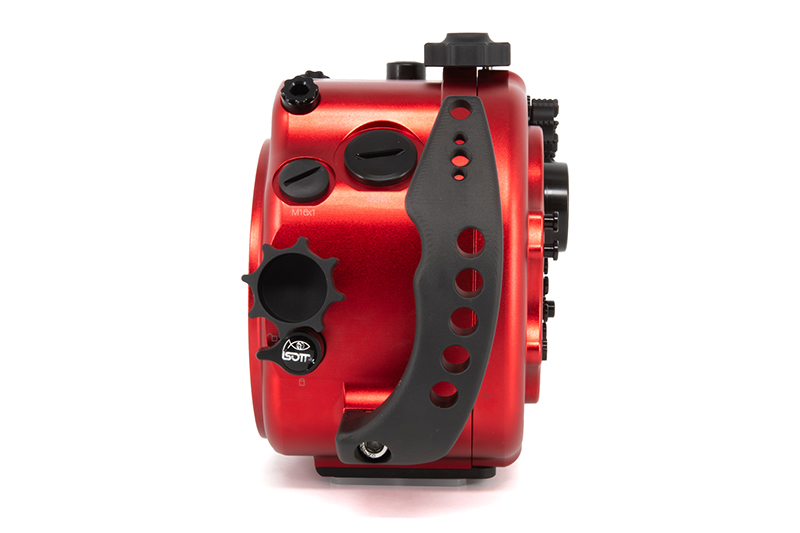

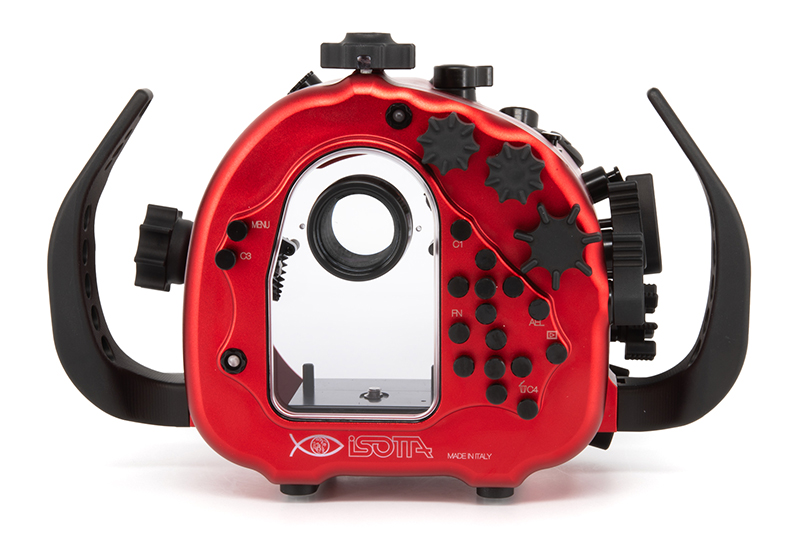

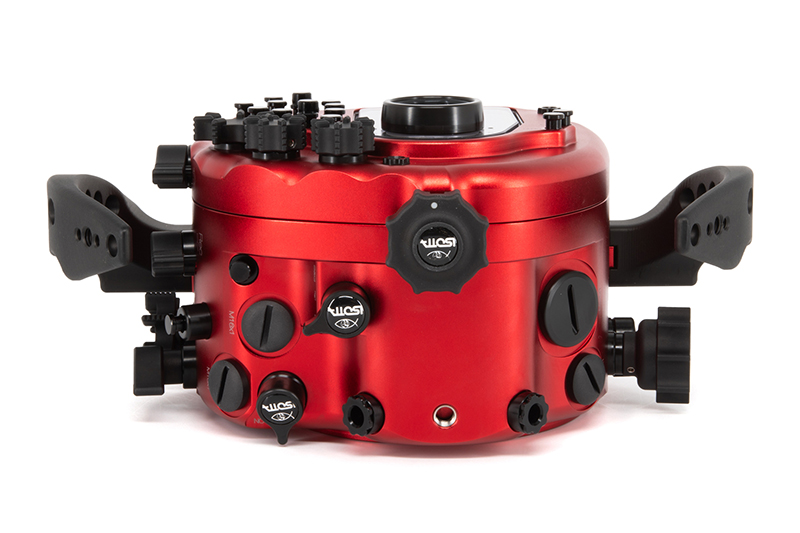

Isotta has announced its housing for the Sony a7 Mark V—the fifth iteration of the company’s entry-level full-framer. The Mark V features the new Bionz XR2 processor and Sony’s first partially-stacked backside-illuminated sensor. The a7 V can shoot bursts up to 10fps with AF/AE tracking using the mechanical shutter (30fps with the electronic shutter) and record 7K-oversampled 4K/60p video with no crop as well as 4K/120p with an APS-C crop.
Built around the B120 port system, Isotta’s housing for the Sony a7 V offers a full range of features: anodized aluminum build, integrated adjustable handles, double O-ring seals on buttons and removable parts, the company’s signature one-handed open/close, a built-in moisture detector, and an M24 port for attaching recorder/monitors. The housing comes with two fiber-optic ports, with the trigger being an optional extra. Like other modern Isotta housings, the new housing can also configured with one or two Nikonos N5 or S6 bulkheads if preferred.
The housing will be available shortly from retailers. Pricing is yet to be confirmed.
PRODUCT INFORMATION
Isotta Underwater Camera Housing for Sony Alpha 7 V
CONTROLS
- ON/OFF lever of the Sony Alpha 7 V
- Ergonomic camera focusing and shutter lever, easy to use with gloves
- Lens release lever
- Front dial
- C1 button
- C2 button
- C3 button
- C4/Delete button
- Mode dial
- Still/Movie/S&Q dial
- Zoom dial
- Port safety lever
- Movie (REC) lever
- AF-ON lever
- Rear dial L
- Rear dial R
- Lock button rear dial R
- Menu button
- AEL button
- Multi-selector buttons
- Playback button
- Control wheel
- Fn button
WHAT IS INCLUDED
- Housing
- Front lid
- Handles
- Standard ISOTTA viewfinder
- Humidity sensor
- Fiber optic connection bulkhead (to use the flash needs an optional trigger)
- Replacement O-ring kit
- Silicone lubricant 15gr/0.5oz
- Warranty: 2 years manufacturer’s (excluding batteries)
TECHNICAL DATA
- Red color anodized aluminum body
- Ergonomic side handles, adjustable (via optional accessory)
- Two fiber optic connections standard (to use the flash needs an optional trigger)
- Three M16 holes and one M24 for using accessories such as vacuum systems, monitors, Nikonos or S6 bulkhead
- Back housing completely detachable from the front housing
- Tray with lock for the easy insertion of the camera
- Single-hand closing knob for the back of the housing
- Aluminum buttons and dials with engraved symbols identical to camera controls
- Wide back display viewfinder glass
- Standard ISOTTA viewfinder
- Double O-Ring seals on all buttons and removable parts
- Moisture sensor with LED indicator (replaceable battery)
- Removable port B120 bayonet
- Safety lock on the porthole to prevent accidental opening
- Wide, rubber covered feet for solid footing on boat floors or sea floor
- M8 hole located on upper side of the housing for various accessories such as focus lights
- Two M6 holes located on housing bottom side for different accessories such as brackets for strobes or tripods
- Prepared for ISOTTA vacuum system (not included)
- External viewfinders can be mounted, ISOTTA and INON X-2 compatible
- Working depth: 100 meters
- Sizes (LxHxP): 282mm x 186mm x 127mm
SPARE PARTS
- 3062 – Set O.R. for Sony Alpha 7 IV and for Sony Alpha 7 V housings
- 1895 – Housing front lid B120
- 1905 – M16X1 cap
- 3352 – M24x1 cap
OPTIONAL
- Hotshoe for Sony Alpha 7S III, Sony Alpha 7 IV, Sony Alpha 7 V, Sony Alpha 7R IV, Sony Alpha 7R V and Sony Alpha 1 housings
- N5 bulkhead
- S6 bulkhead
- Vacuum system ISOTTA
- Handle extension
- ISOTTA right or angled viewfinder
- Upper tray MEDIUM
